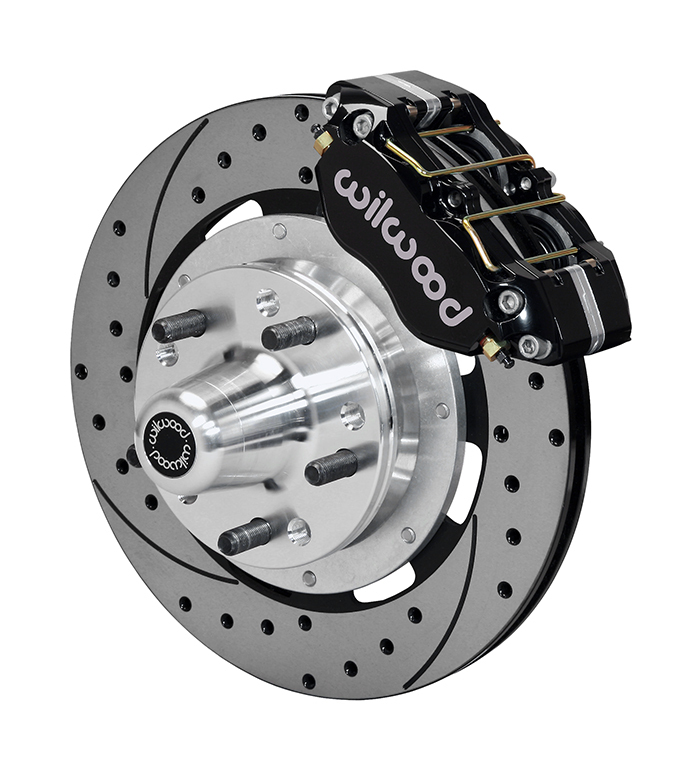

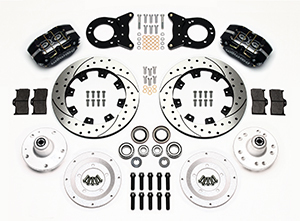

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Kit Summary
OE Hub Offset: +.09
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15


Fitment:

  • Ford Fairlane 1964-1965 All
  • Ford Fairlane 1966-1969 Disc Brake Spindle
  • Ford Fairlane 1966-1969 Drum Brake Front Spindle
  • Ford Falcon 1967-1969 Disc Brake Spindle
  • Ford Falcon 1965-1966 Disc Brake V-8 Spindle Only
  • Ford Falcon 1967-1969 Drum Brake Front Spindle
  • Ford Falcon 1970 Drum Brake Front thru 8/24/69
  • Ford Falcon 1965-1966 Drum Brake V-8 Spindle Only
  • Ford Falcon 1963-1964 V-8 Spindle Only
  • Ford Maverick 1970 Drum Brake Front thru 8/24/69
  • Ford Mustang 1970 Disc Brake GT350 & 500 only
  • Ford Mustang 1967-1969 Disc Brake Spindle
  • Ford Mustang 1965-1966 Disc Brake V-8 Spindle Only
  • Ford Mustang 1967-1969 Drum Brake Front Spindle
  • Ford Mustang 1965-1966 Drum Brake V-8 Spindle Only
  • Ford Ranchero 1966-1969 Disc Brake Spindle
  • Ford Ranchero 1965 Disc Brake V-8 Spindle Only
  • Ford Ranchero 1966-1969 Drum Brake Front Spindle
  • Ford Ranchero 1967-1968 Drum Brake Spindle
  • Ford Ranchero 1965 Drum Brake V-8 Spindle Only
  • Ford Ranchero 1963-1964 V-8 Spindle Only
  • Ford Torino 1968-1969 Disc Brake Spindle
  • Ford Torino 1969 Drum Brake Front Spindle
  • Ford Torino 1968 Drum Brake Spindle
  • Mercury Comet 1967-1969 Disc Brake Spindle
  • Mercury Comet 1965-1966 Disc Brake V-8 Spindle Only
  • Mercury Comet 1967-1969 Drum Brake Front Spindle
  • Mercury Comet 1965-1966 Drum Brake V-8 Spindle Only
  • Mercury Comet 1963-1964 V-8 Spindle Only
  • Mercury Cougar 1967-1969 Disc Brake Spindle
  • Mercury Cougar 1967-1969 Drum Brake Front Spindle
  • Mercury Cyclone 1966-1969 Disc Brake Spindle
  • Mercury Cyclone 1969 Drum Brake Front Spindle
  • Mercury Cyclone 1965-1968 Drum Brake Spindle
  • Mercury Cyclone 1963-1964 V-8 Spindle Only
  • Mercury Montego 1968-1969 Disc Brake Spindle
  • Mercury Montego 1969 Drum Brake Front Spindle
  • Mercury Montego 1968 Drum Brake Spindle
