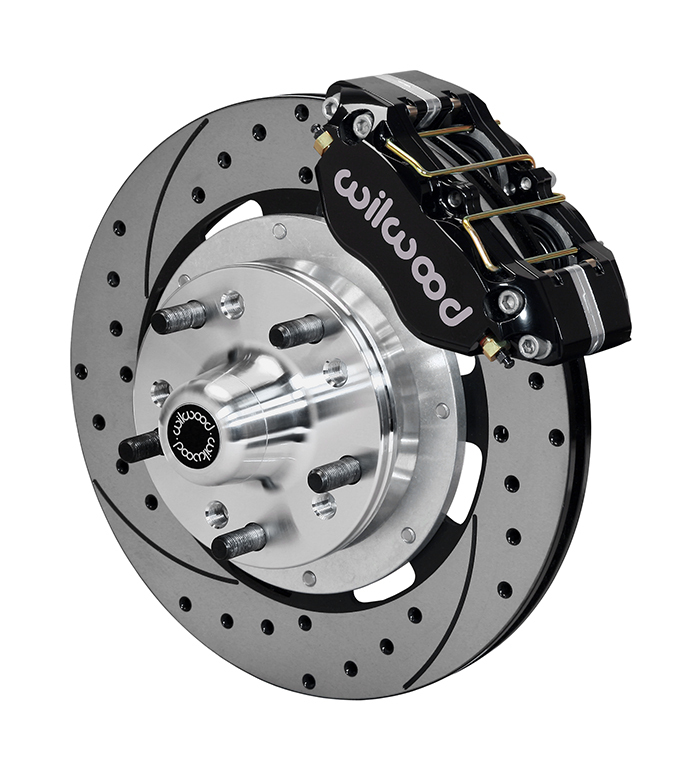

Dynapro Dust-Boot Pro Series Front Brake Kit

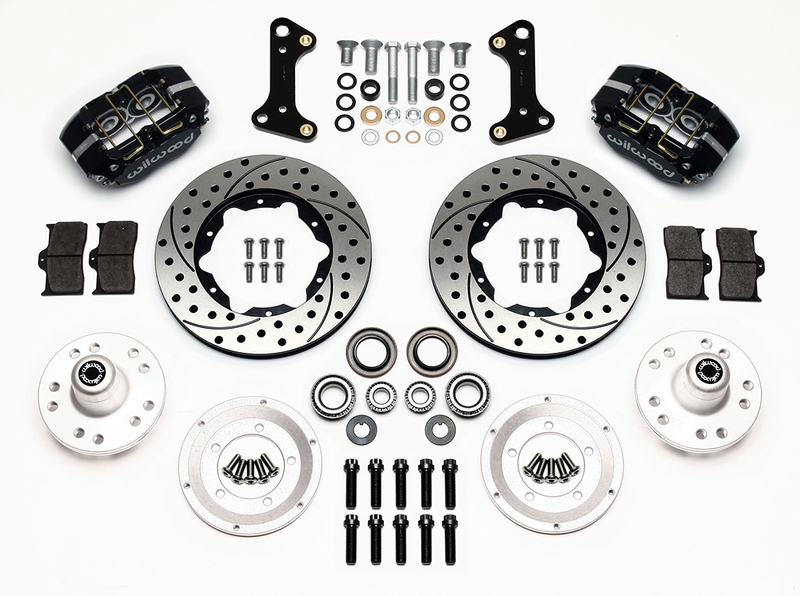

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 12" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Kit Summary
OE Hub Offset: +.19
(Increase / Decrease Track Width)
Spindle Type: Drop Spindle Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 14


Fitment:

  •
  • Chevrolet Camaro 1967-1969 Disc Brake Spindle
  • Chevrolet Camaro 1967-1969 Drum Brake Front
  • Chevrolet Camaro 1968-1969 Z/28 w/ 4 Wheel Disc
  • Chevrolet Chevelle 1964-1966 All
  • Chevrolet Chevelle 1967-1972 Disc Brake Spindle
  • Chevrolet Chevelle 1967-1972 Drum Brake Front
  • Chevrolet Chevy II 1964-1966 All
  • Chevrolet Chevy II 1967-1968 Disc Brake Spindle
  • Chevrolet Chevy II 1967-1968 Drum Brake Front
  • Chevrolet El Camino 1964-1966 All
  • Chevrolet El Camino 1967-1972 Disc Brake Spindle
  • Chevrolet El Camino 1967-1972 Drum Brake Spindle
  • Chevrolet Monte Carlo 1970-1972 Disc Brake Spindle
  • Chevrolet Nova 1967-1974 Disc Brake Spindle
  • Chevrolet Nova 1967-1974 Drum Brake Front
  • GMC Sprint 1971-1972 Disc Brake Spindle
  • GMC Sprint 1971-1972 Drum Brake Spindle
  • Heidts Pro-G 9999 Pro-G Suspension
  • Pontiac Firebird 1967-1969 Disc Brake Spindle
  • Pontiac Firebird 1967-1969 Drum Brake Spindle
  • Pontiac Grand Prix 1969-1972 Disc Brake Spindle
  • Pontiac Grand Prix 1969 Drum Brake Spindle
  • Pontiac GTO 1964-1966 All
  • Pontiac GTO 1967-1974 Disc Brake Spindle
  • Pontiac GTO 1974 Drum Brake Front
  • Pontiac GTO 1967-1971 Drum Brake Spindle
  • Pontiac LeMans 1964-1966 All
  • Pontiac LeMans 1967-1972 Disc Brake Spindle
  • Pontiac LeMans 1967-1972 Drum Brake Spindle
  • Pontiac Tempest 1964-1966 All
  • Pontiac Tempest 1967-1972 Disc Brake Spindle
  • Pontiac Tempest 1967-1972 Drum Brake Spindle
  • Pontiac Ventura II 1971-1974 Disc Brake Spindle
  • Pontiac Ventura II 1971-1974 Drum Brake Front
  • Ridetech 1963-1979 C2/C3 Corvette 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1964-1966 Mustang 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1964-1972 GM A Body 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1967-1981 GM F Body 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1968-1974 GM X Body 9999 w/ Ridetech Spindle # 11009300
