Strange HD Pro Aluminum Case Kits
Strange HD Pro aluminum case kits offer large bore sizes for the highest splined axles. They use superior 206-T4 heat-treated aluminum, which has 12 percent more yield strength and 32 percent higher tensile strength than the commonly used 356-T6; it's also substantially lighter than an iron case. HD Pro kits are designed for drag racing or abusive street/strip applications with high horsepower and torque. They feature a billet pinion support with 360 degree channel to maximize oil flow to the pinion bearing, as well as two contact points with the bore of the case--which holds the pinion shaft more securely for improved bearing and gear life. Their oversized tail bearing handles more load and greater rpm; billet main caps with chromoly studs support the carrier bearings, while significantly reducing ring gear deflection.
Part Number: P3207
Application – Strange HD 40 spline spool
Additional Parts Required
HD Spool
9″ or 9 1/2″ gear set
Yoke or coupler
Completion kit
Gasket
This Case May Not Fit Your Housing
Please refer to housing clearance diagram
Using 9 1/2″ Gear Set ?
Also check gear diagram

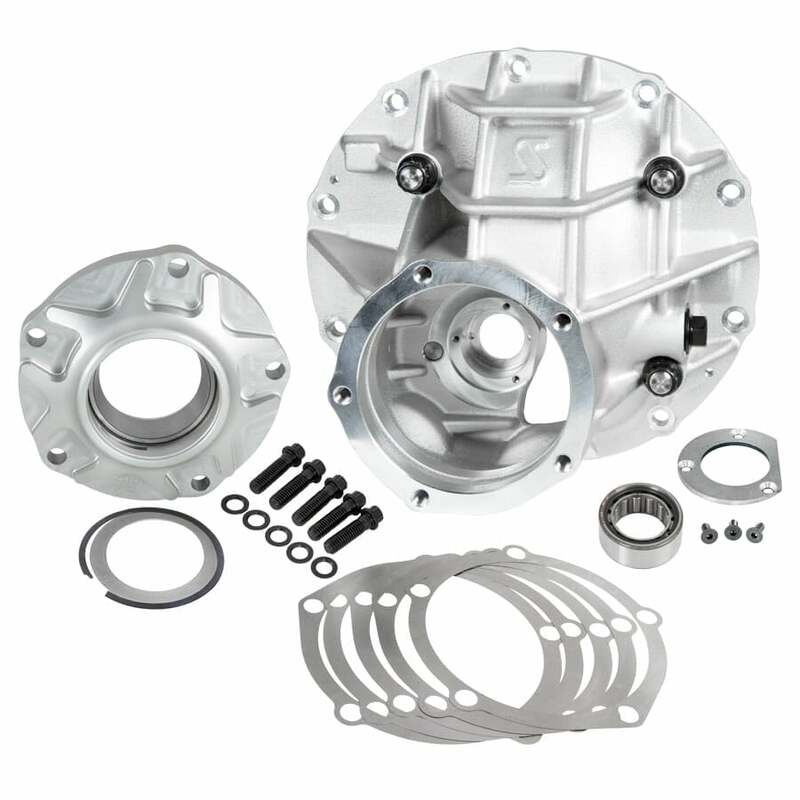

Kit Includes
N2307

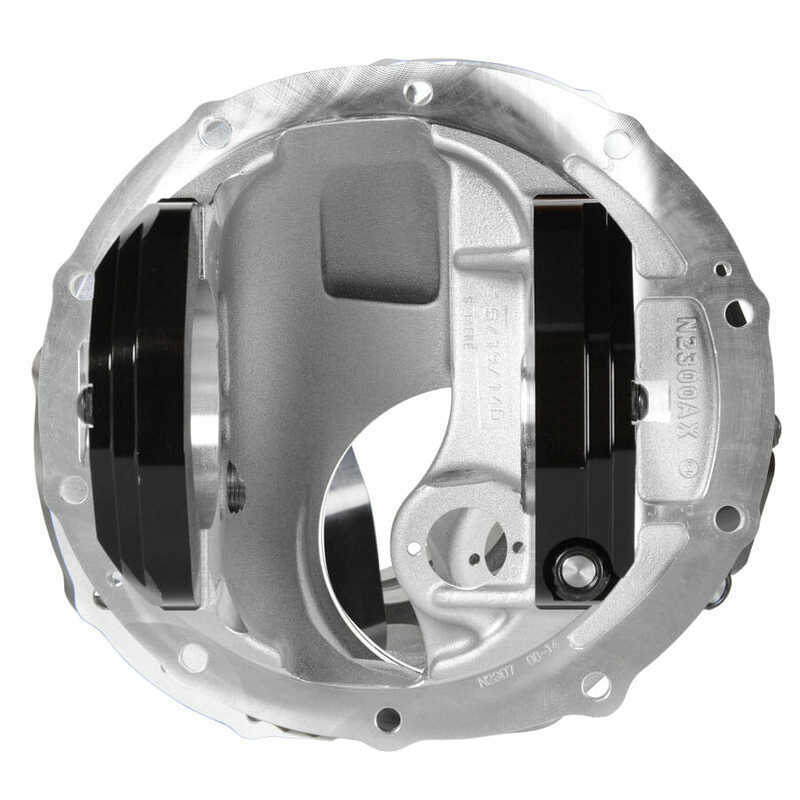

• HD Pro Aluminum 3.812″ bore case

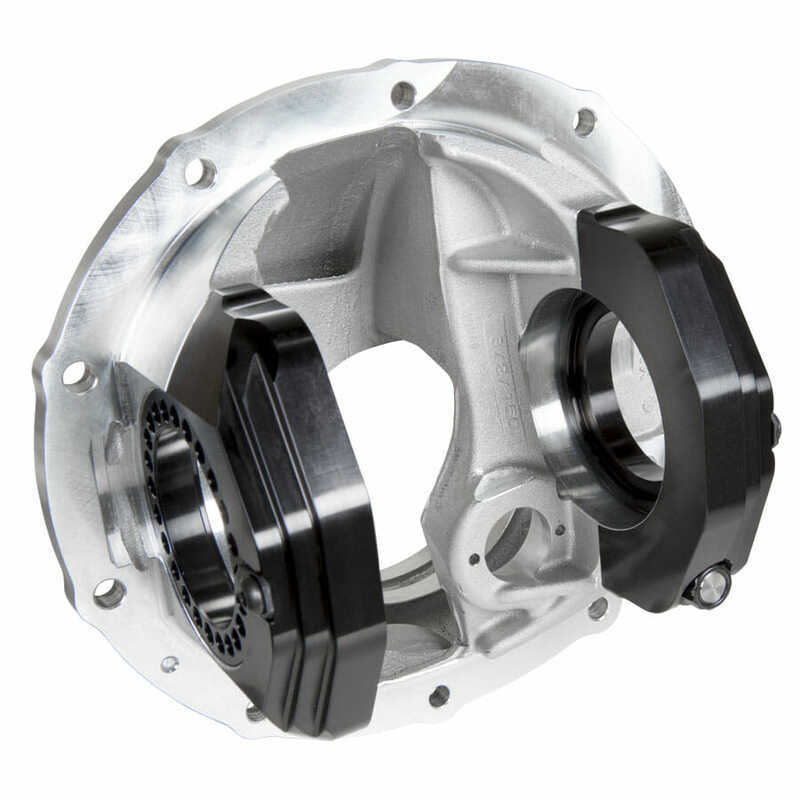

• Billet aluminum main caps
• Solid steel adjuster nuts
N2322

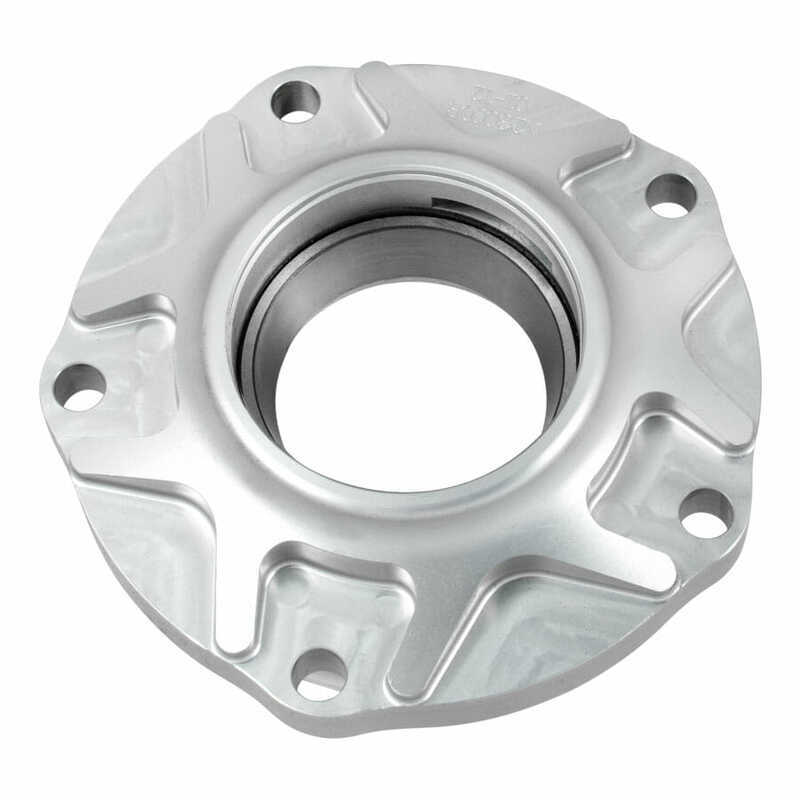

• Forged aluminum tapered bearing pinion support
• Pinion seal retaining plate and snap ring
• Timken® races installed
• Support bolts, washers, and O-ring
Additional Components
• High capacity wide tail bearing
• Retainer plate and screws
• Pinion depth shim kit
Related Components
Spools
40 spline…………….. D2002 / D2004
Yokes
28 spline…………….. U1603 / U1603B
35 spline…………….. U1604 / U1604B
Couplers
28 spline…………….. U3627
35 spline…………….. U3629
Completion Kits
For 28 spline pinion…… R3200ST
For 35 spline pinion…… R3200LT
Gasket
Fel Pro………………. H1112G
Fel Pro HP……………. H1111
LubeLocker……………. H1111S
