Strange offers a variety of pinion supports for 9” ford cases. Strange's line of forged aluminum Drag Racing supports can accommodate 28 spline or 35 spline pinions and are available in both tapered and ball bearing configurations. The Strange pinion support forging offers optimal grain structure and provides superior strength when compared to random grain flow pinion supports. These supports accept larger than stock front and rear pinion bearings allowing for a tremendous increase in thrust capacity. The all new Strange forged aluminum Daytona support (N1917) offers a the best of both worlds by featuring superior oiling channels for extending bearing life, lightweight aluminum construction and the rigidity to withstand the most demanding of applications.

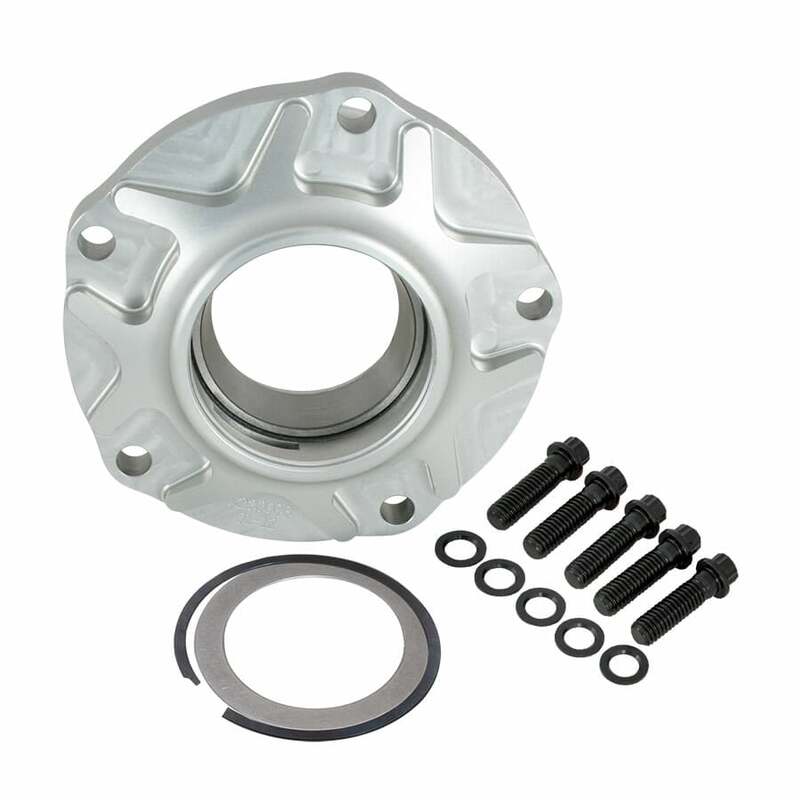

Part Number: N2322

Application
Strange HD Pro cases
N2300 / N2303 / N2307

Will Not Fit Any Other Cases

Features
Billet 6061-T6511 aluminum body
Clear anodized finish
Machined for oversized races
Grooved for snap ring to retain pinion seal
Able to accept 28 or 35 spline pinion with proper bearing kit

Includes
Front & rear races installed – N1931 / N1939
O-ring – N1958A
Pinion seal retaining washer & snap ring
Support bolts & washers

Note
Requires proper bearing kit and yoke or coupler
Bearing sizes exceed OEM Ford and Daytona style supports
OEM yokes will be .188″ to .313″ too long for pinion nut to fully engage threads

Related Components
For 28 Spline Pinion
Bearing kit…………… N1923
Yokes………………… U2203HDA / U1603
Coupler………………. U3627

For 35 Spline Pinion
Bearing kit…………… N1924
Yokes………………… U1604 / U1634
Coupler………………. U3629
