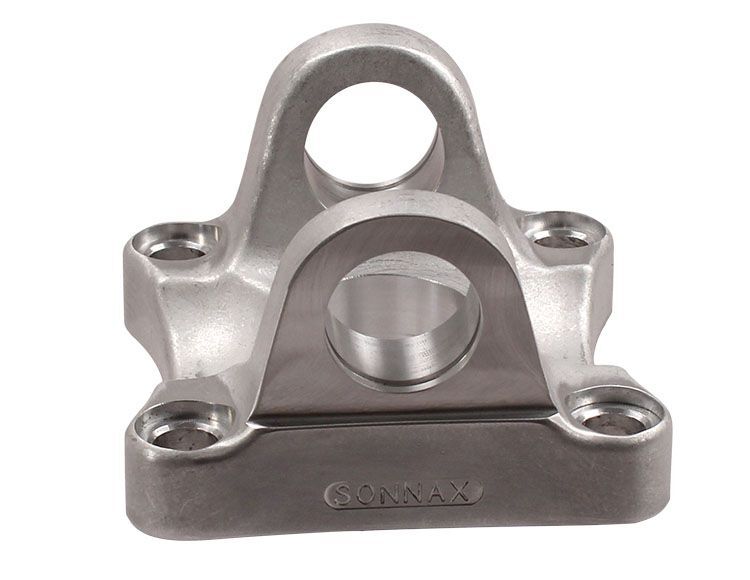

Aluminum Flange Yokes

Precision machined from billet aluminum
Unrivaled concentricity for exceptional balance & minimal runout
Significantly reduced weight vs. steel (up to 54%)
Superior craftsmanship & finish complement a show-quality driveline

What vehicles do these flanges fit?
Measure bolt circle diameter as well as pinion and output flange bolt hole diameters to determine if these yokes will fit your build.


  • Material: 6061-T6 Aluminum
  • Pilot Type: F
  • U-Joint Series: 1350
  • Bolt Hole Dia.: 0.516"
  • Bolt Circle Dia.: 4.75"
  • Flange Face to Centerline: 1.750"
  • Weight: 1.270lbs
  • Bolt Count: 4
  • Pilot Dia.: 2.950"
