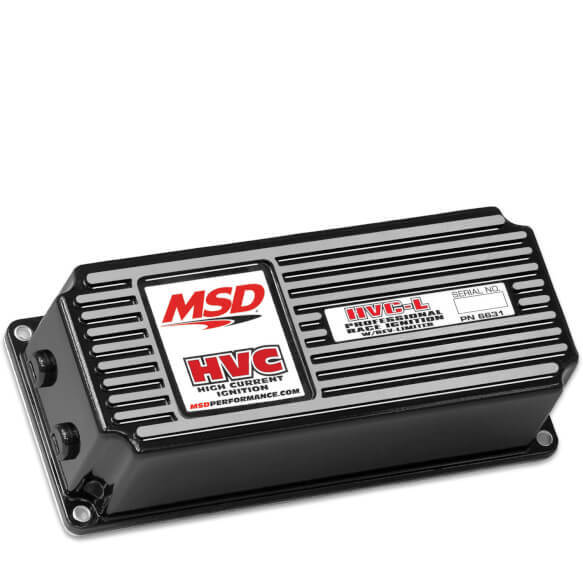

Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter.

Features:
  • Includes built-in Fast rev limiter
  • Must be used with HVC Coil PN 8250
  • Built-in reverse polarity protection circuit
  • 150 millijoules per spark up to 15,000 RPM
  • 550 primary voltage output to coil
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • Multiple sparks for 20 degrees of crankshaft rotation
  • 6-pin Weathertight connector, mandatory for NASCAR use
  • Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
  • No CARB Exemption Order Number
